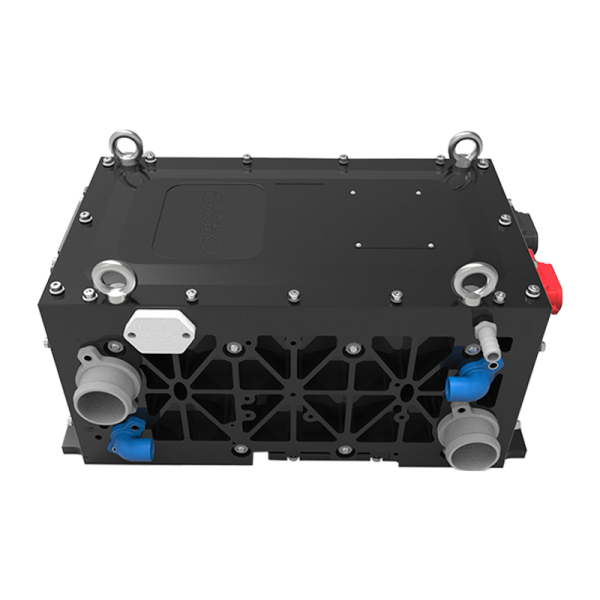

30kW Liquid Cooled FC System VL-Series
This is the entry-level fuel cell stack for the mid-range liquid cooled fuel cell stacks that Horizon Fuel Cell Technologies offers. These fuel cell stacks offer the ability to electrify boats, farm equipment, and other mobility applications. In a place like California where laws and executive orders have been put into place to eliminate fossil fuel use in new cars and small engines, the VL-30 fuel cell stack offers individuals and companies the ability to convert vehicle fleets to a zero emission profile.
30kW Liquid Cooled Fuel Cell VL-Series
Additional Infromation
Using this fuel cell product would enable fleets that undergo such a conversion to maintain the level of power they are used to with the benefit of being environmentally friendly. Depending on the location there may already be a local hydrogen dispensing station, but if there is not one available a company like BayoTech can help to setup a refueling supply to ensure a painless conversion to the use of this fuel cell stack.
If you are looking to replace a current diesel or gasoline engine with a fuel cell stack or if you are looking to pursue a more ambitious project, then please complete a quote request form with the information relating to your project. This will enable us to better meet your needs as well as set proper delivery expectations for the fuel cell system. In keeping with other liquid fuel cell stacks this stack comes with an air filter, air flow meter, hydrogen intel solenoid valve, humidifier, throttle valve, radiator, ion exchange, controller, fuel cell stack, fill water tank, fuel cell 24V water pump, constant voltage DC, and blower to bring air into the fuel cell stack
List of core VL-30 components and their functionality:
- Air filter (Prevents damaging size particles from entering fuel cell)
- Air flow meter (Monitoring feedback of air flow)
- Hydrogen heat exchanger (Increase the temperature of hydrogen)
- Intercooler (Reduce the temperature of the air entering the stack)
- Humidifier (Adds humidity to the air entering the stack)
- Throttle (Adjust the internal operating pressure of the stack)
- PTC heater (Heating of low temperature cold start)
- Water tank (Refill water to and exhaust the system)
- Deionizer (Absorbs the ions in the coolant, reducing the conductivity of the coolant)
- Water pump (Power the cooling system)
- Low voltage distribution box (Provide low voltage distribution to the system)
- Controller (Control system, communication between system and vehicle)
- Fuel cell stack (Oxygen and hydrogen react to produce power)
30kW Liquid Cooled FC Stack VL-Series Quick Product Facts
System Rated Power
This system power output is 30kW.
Stack Rated Power
The fuel cell stack gives 36kW of output power.
Number of Cells
This fuel cell stack is composed of 150 fuel cells.
Voltage Current Output
The voltage current output of the fuel cell stack is 90 volts at 400 amperes.
DC Output Voltage
Direct current output voltage reaches 300 to 450 volts.
Fuel Cell Efficiency
Minimal fuel cell efficiency at rated power is 47.8%.
Ambient Temperature
The system can operate in ambient temperature of -30 to 45°C / -22 to 113°F.
Stack Operating Temperature
The fuel cell stack operates best in a temperature ranging from 70 to 85°C / 158 to 185°F.
FC System Weight
The system (including DC and radiator) weighs 135kg / 297 lbs.
System dimensions
This fuel cell system dimensions are 742 x 686 x 637mm / 29 x 27 x 25″
Hydrogen Pressure
Hydrogen must be fed into the fuel cell stack at a pressure of 1.1-1.3Mpag.
Hydrogen Purity
A fuel of gaseous hydrogen at a minimum purity level of 99.97% is required.
Please contact Sales for Pricing sales@robotixeducation.ca
