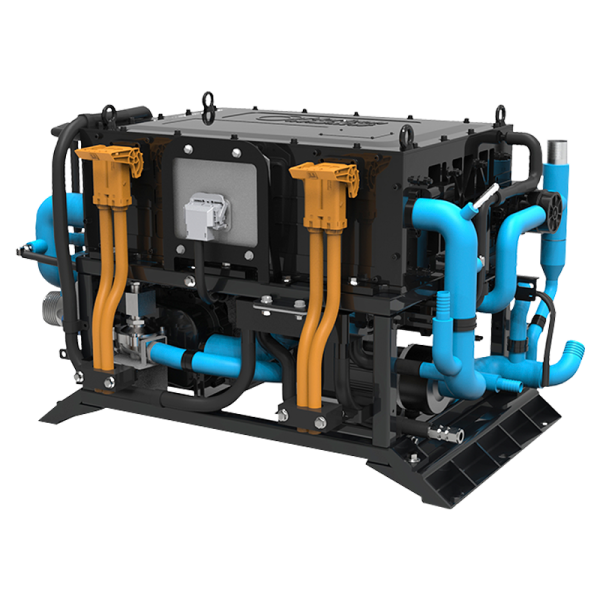

65kW Liquid Coole FC System VL-Series
This is the third offering of the mid-range fuel cell systems from Horizon. At 65kW this fuel cell stack is capable of powering everything from a small community of homes all the way to a Class 8 truck. However, regardless of the application it is used in it enables zero emissions and is environmentally friendly. It is also possible to use this fuel cell stack to convert the majority of heavy-duty agriculture and construction equipment to zero emission vehicles, and such a conversion would reduce the noise profile of those types of vehicles.
65kW Liquid Cooled Fuel Cell VL-Series
Additional Information
Please submit a quote request form in order for us to provide accurate pricing information and to set proper delivery expectations. As this is a 65kW system instead of a stand-alone fuel cell stack, the following pieces of equipment ship with this system: An air filter, air flow meter, hydrogen intel solenoid valve, humidifier, throttle valve, radiator, ion exchange, controller, fuel cell stack, fill water tank, fuel cell 24V water pump, constant voltage DC, and blower to bring air into the fuel cell stack
List of core VL-65 components and their functionality:
- Air filter (Prevents damaging size particles from entering fuel cell)
- Air flow meter (Monitoring feedback of air flow)
- Hydrogen heat exchanger (Increase the temperature of hydrogen)
- Cold machine (Reduce the temperature of the air entering the stack)
- Humidifier (Adds moisture to the air entering the stack)
- Bypass valve (Divert excess air from the air compressor and protect the stack in case of emergency)
- Throttle (Adjust the internal operating pressure of the stack)
- Radiator (Removes excess heat from the system)
- PTC heater (Heating of low temperature cold start)
- Water tank (Refill water to and exhaust the system)
- Deionizer (Absorbs the ions in the coolant, reducing the conductivity of the coolant)
- Water pump (Power the cooling system)
- Low voltage distribution box (Provide low voltage distribution to the system)
- Controller (Control system, communication between system and vehicle)
- Fuel cell stack (Oxygen and hydrogen react to produce power)
65kW Liquid Cooled FC Stack VL-Series Quick Product Facts
System Rated Power
This system power output is 65kW.
Stack Rated Power
The fuel cell stack gives 79kW of output power.
Number of Cells
This fuel cell stack is composed of 330 fuel cells.
Voltage Output
The voltage current output of the fuel cell stack is 198 volts at 400 amperes.
DC Output Voltage
Direct current output voltage reaches 500 to 700 volts.
Fuel Cell Efficiency
Minimal fuel cell efficiency at rated power is 47.8%.
Ambient Temperature
The fuel cell stack operates best in a temperature ranging from -22 to 113° F / -30 to 45° C.
Stack Operating Temperature
The fuel cell stack operates best in a temperature ranging from 70 to 80°C / 158 to 176°F.
FC System Weight
The stack (including DC and radiator) weighs 170kg/ 374lbs.
Hydrogen Pressure
Hydrogen must be fed into the fuel cell stack at a pressure of 1.1-1.3Mpag.
Hydrogen Purity
A fuel of gaseous hydrogen at a minimum purity level of 99.97% is required.
Please contact Sales for Pricing sales@robotixeducation.ca
