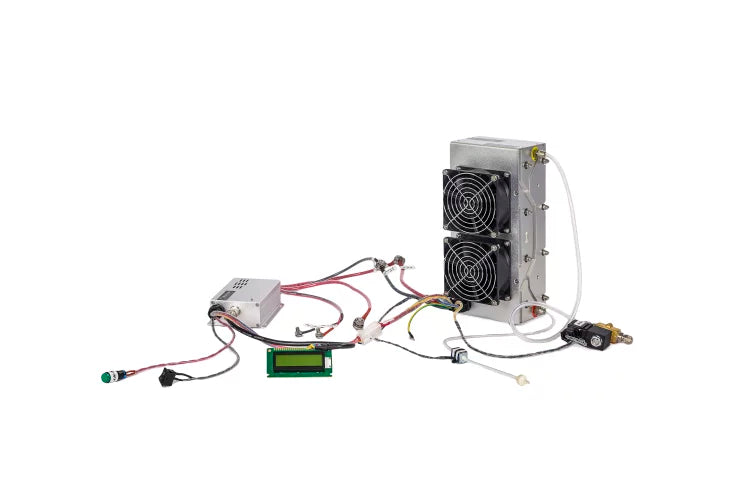

H-500 PEM Fuel Cell - 500W

Original price $2,757.95 - Original price $2,757.95
Original price
$2,757.95
$2,757.95 - $2,757.95
Current price $2,757.95
SKU HRZ-056

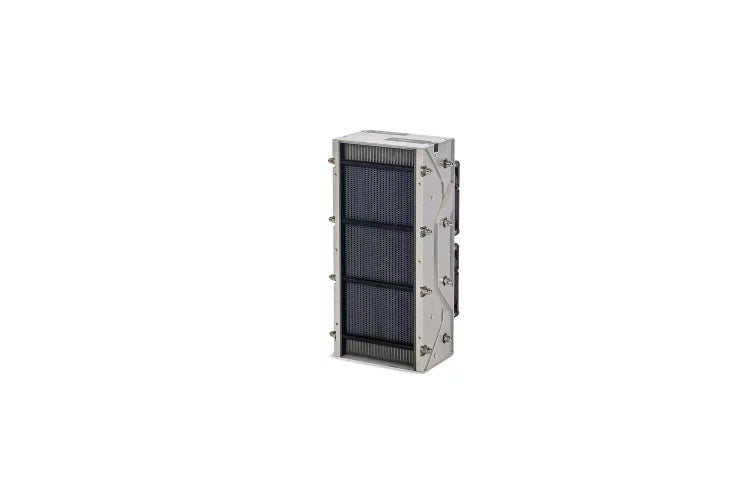

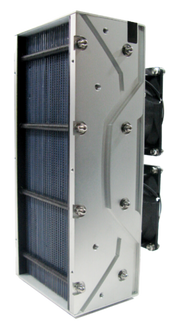

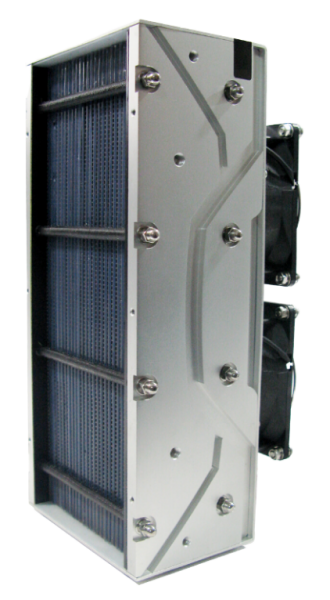

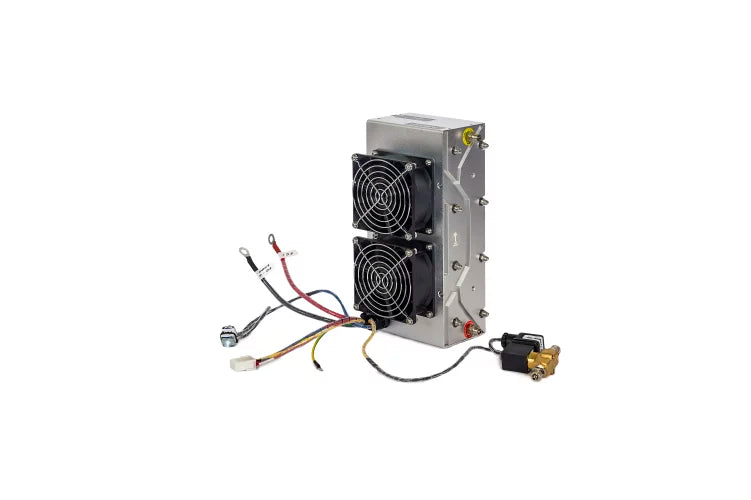

Fuel Cell Stack 500W

Additional Information

While Horizon typically keeps a small stock of these fuel cells in order to expedite orders, it is highly recommended that you click here to fill out a quote request form.  This will enable us to contact you with availability and set proper delivery expectations.  Additionally, by filling out the quote request form we can also provide you with additional information regarding accessory components that are needed to expedite the integration of this product into your project.  As with other hydrogen fuel cell stacks in the H-Series, we can help with procuring a DC-to-DC converter in order to help maintain a continuous level of power from the fuel cell stack.

500W Fuel Cell and Hydrogen

Safety Requirements

Do not insert or disconnect power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is disassembled or otherwise tampered with. Hydrogen is a colorless, odorless, and flammable substance.  Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any leaking hydrogen within the system or from the hydrogen storage canister.  Please refer to the H-500 User Manual to read all of the safety requirements for the product.

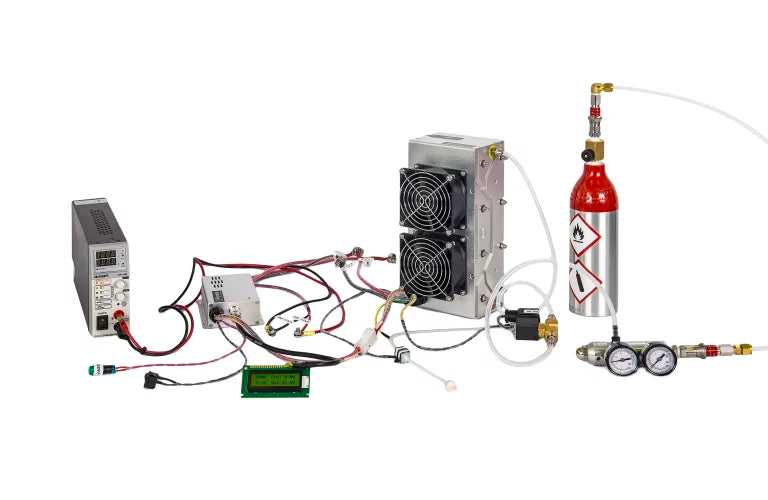

H-500 PEM Fuel Cell with MH

Fuel Cell Stack 500W Quick Product Facts

Number of cells  icon

Number of Cells

This fuel cell stack is composed of 24 fuel cells.

Pressure icon

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.

Temperature icon

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.

Humidity icon

Humidification

This fuel cell stack uses self-humidification.


weight icon

FC Stack Weight

The stack (including fan and casing) weighs 7.5lbs / 3.4kg.

weight+2 icon

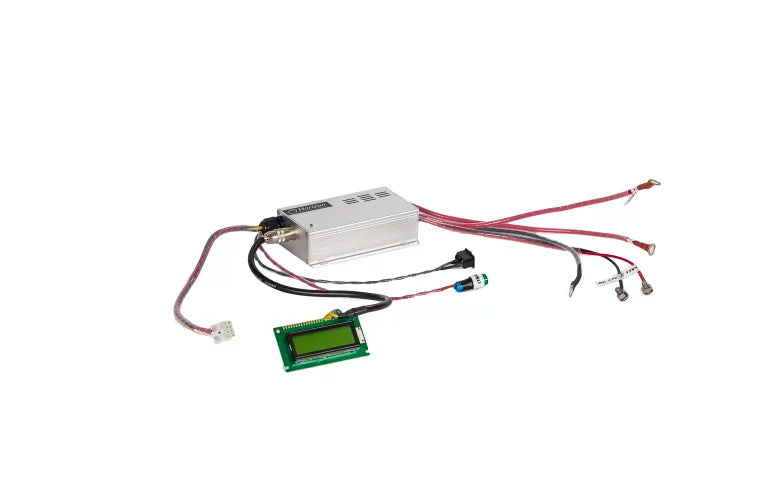

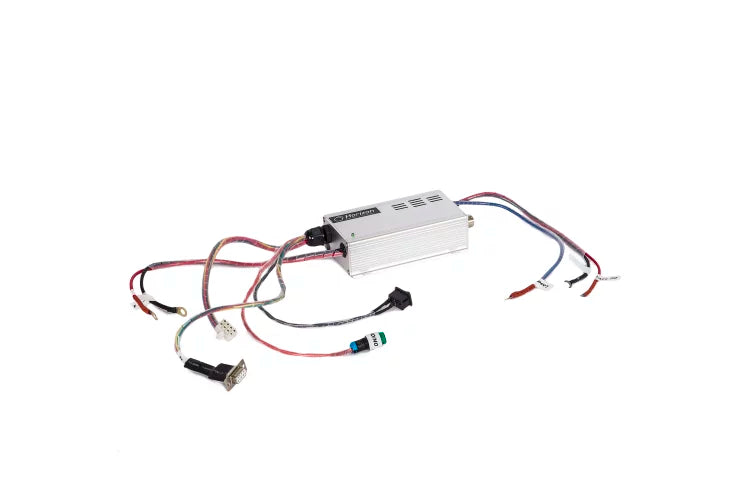

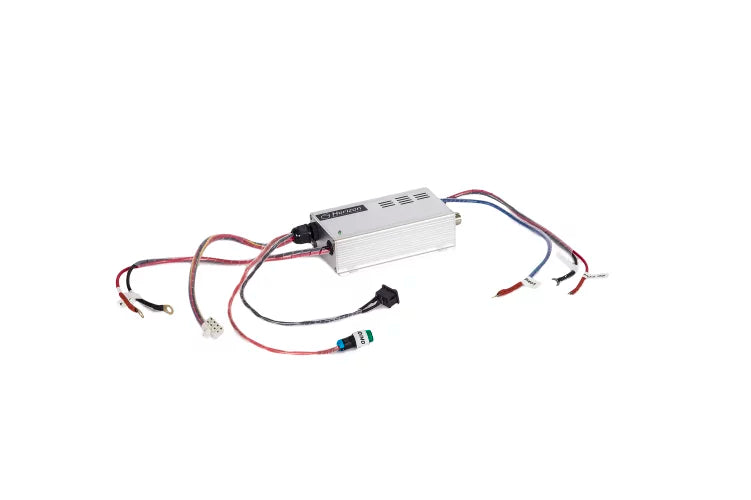

Controller Weight

The weight of the controller is 1.3lb / 0.6kg.

efficiency icon

System Efficiency

At 14.4 volts the efficiency of the system is 40%.

external+power+supply icon

External Power Supply

Proper operation of the stack requires an external power supply of 13 volts at 5 amperes.

Downloads

Datasheet

  pdf [880.45 kB]

User Manual

  pdf [1.73 MB]
  pdf [3.7 MB]
Please contact Sales for Pricing sales@robotixeducation.ca
