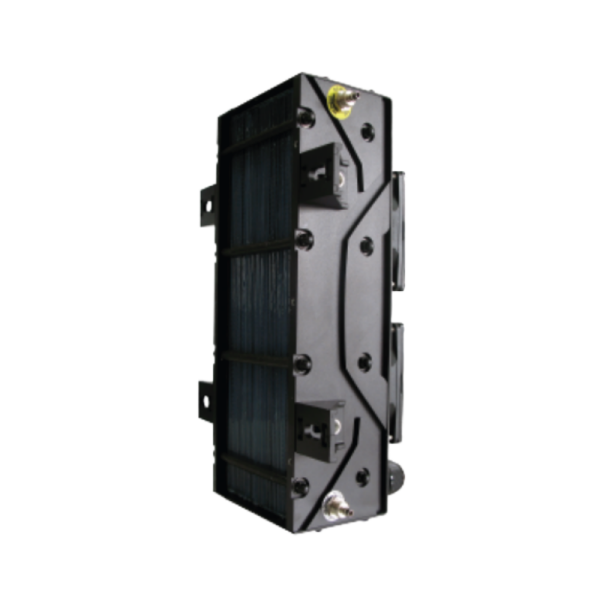

H-500 XP Fuel Cell Stack

Original price $5,423.95 - Original price $5,423.95
Original price
$5,423.95 - $5,423.95
Current price $5,423.95

In collaboration with SHELL Eco-marathon champions, Horizon has developed several generations of what would be considered the “ultimate” system aimed at maximizing the opportunity for podium placement. Customers of XP systems in the past 2-3 years have all achieved excellent rankings, including first, second and third place, in some cases, consecutively. Our latest generation H-1000XP has recently achieved a peak efficiency reaching up to 59% during real test with one of the teams in Asia. The system has been oversized and hydrogen purging frequency and duration have been greatly reduced.

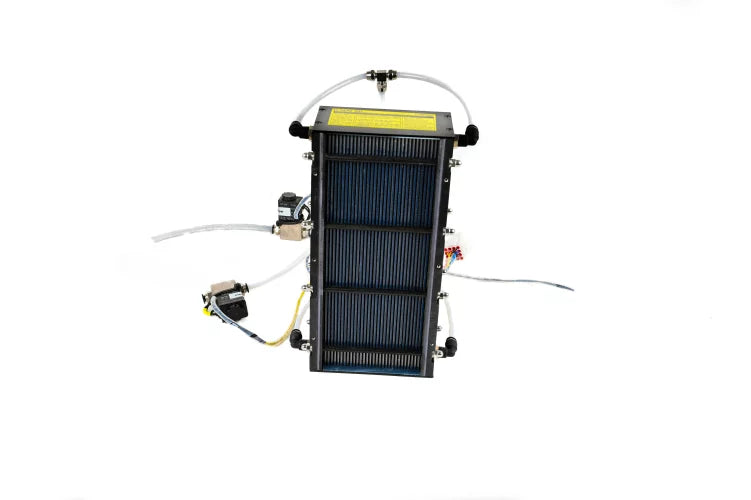

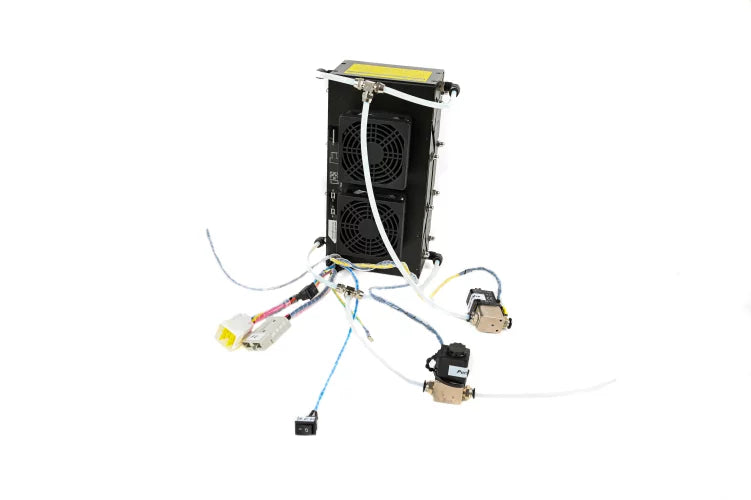

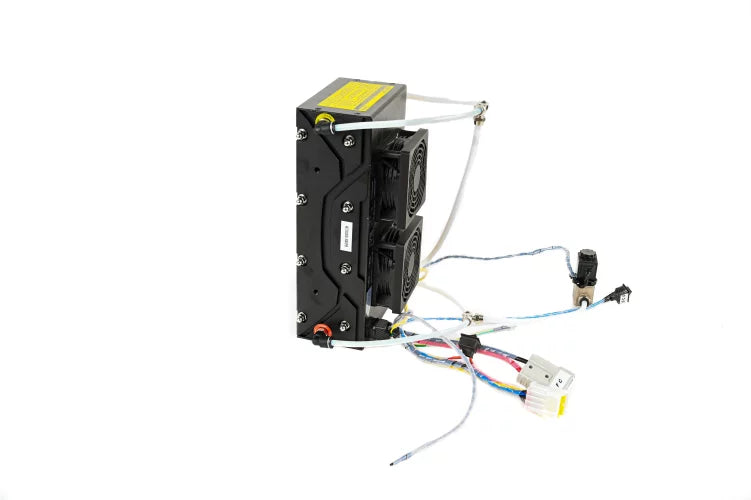

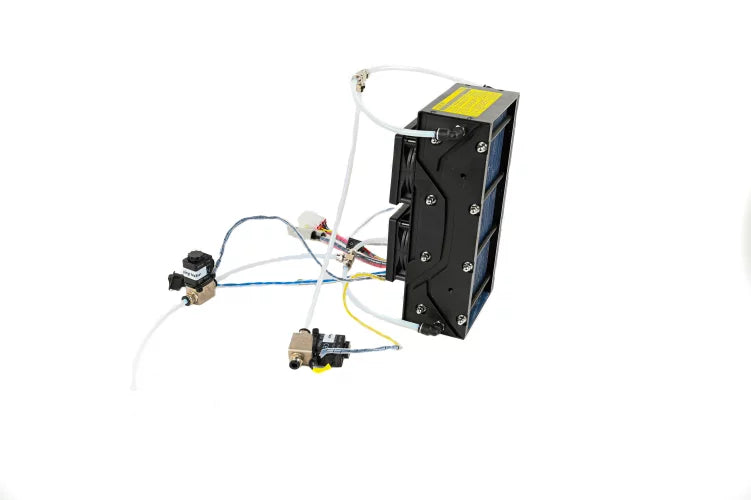

Fuel Cell Stack 500W XP

Additional information

Please submit a quote request form in order to obtain pricing information as well as expected delivery times.  We can also help to build a package of additional components that are needed in order to facilitate the integration of this fuel cell stack into your project.

Fuel Cell and Hydrogen

Safety Requirements

Do not attach or detach power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is dismantled or otherwise modified. Hydrogen is a colorless, odorless, and flammable substance.  Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any hydrogen that has escaped within the system or from the hydrogen storage canister.  Please refer to the H-500 XP User Manual to see the full list of the safety requirements for the product.

Fuel Cell Stack 500W XP Quick Product Facts

Number of cells  icon

Number of Cells

This fuel cell stack is composed of 30 fuel cells.

Pressure icon

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.

Temperature icon

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 32 to 95° F / 0-35° C.

Humidity icon


This fuel cell stack uses self-humidification.

weight icon

FC Stack Weight

The stack (including fan and casing) weighs 8.6lbs / 3.9kg.

efficiency icon

System Efficiency

At 18 volts the efficiency of the system is 40%.

XP-Series Fuel Cell Stacks

Horizon's XP-series systems are the most fuel efficient available on the market - ideal for use in efficiency competititons such as Shell Ecomarathon.

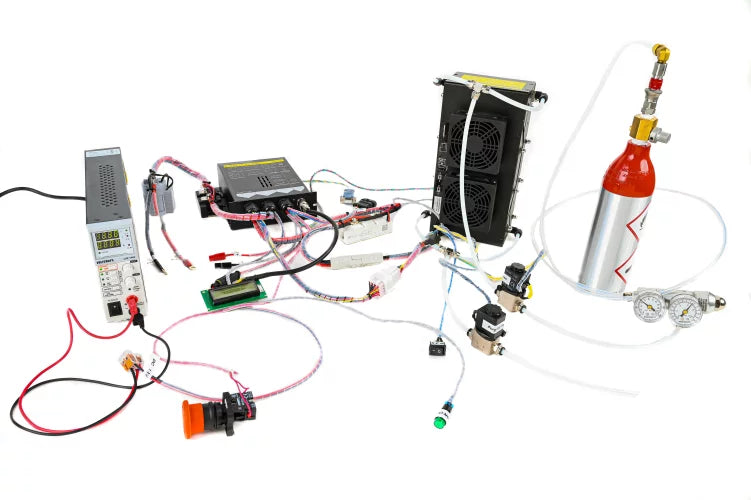

  • Connections/Tubing
  • Electronic valves

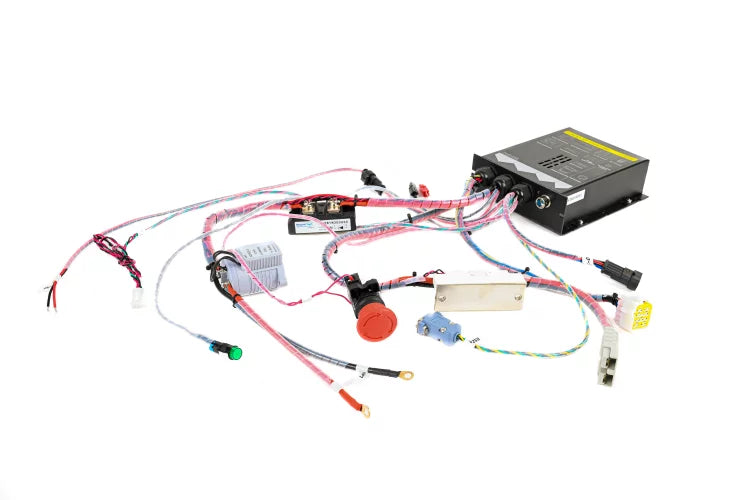

  • Electronic control box H-500 stack with blower
  • Stack holder
  • LCD Display
  • Start up battery connector
  • Ambient temperature sensor
  • Blower controller

Optional components

  • Monitoring software
  • Hydrogen sensor
  • DC/DC convertor
  • Ultracapacitor bank
