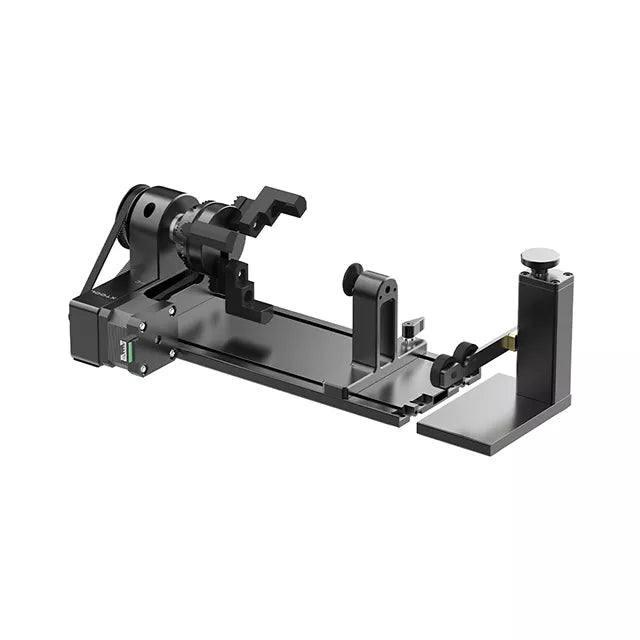

xTool RA2 Pro for M1

by xTool
Original price $287.00 - Original price $287.00
Original price
$287.00
$287.00 - $287.00
Current price $287.00
SKU XTL-007

Super Versatile and Functional

You can easily change the structure to process different objects but get the same amazing results.

Roller Rotary

Extra length     Extra diameter     Irregular cylinders

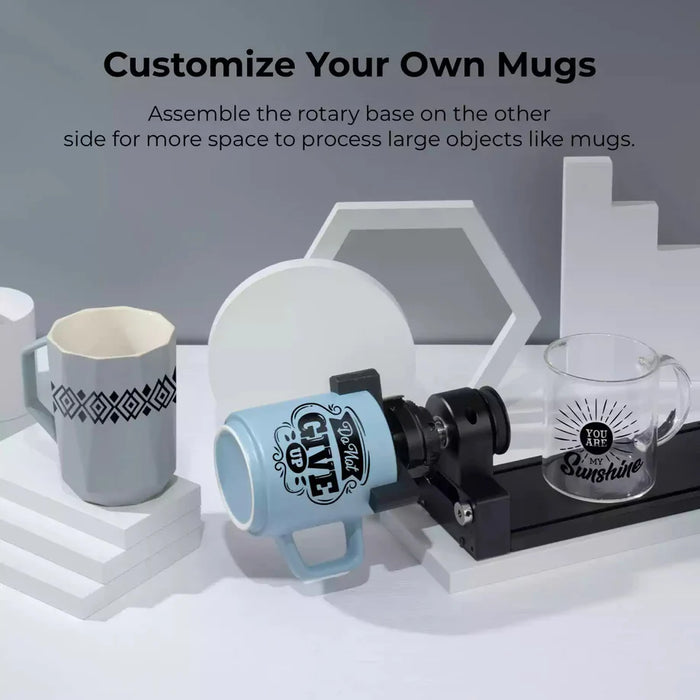

Chuck Rotary

Vector engraving     Mugs     Tumblers

Sphere Rotary

Balls     Vector engraving     25mm-100mm

Ring Rotary

Rings      Vector engraving     11mm-70mm

Meet all Your Needs

From home to outdoor, from party to sport, RA2 Pro suitable for 90% daily use cylinders and spheres. Make unique wedding wine glasses and custom jewelry.

Higher Speed and Accuracy



360°/s

maximum angular speed

0.45°

precise control

0-100mm

diameter range

*360°/s speed is for 37mm diameter cylinder.

Efficient Vector Engraving

Won't Slip All the Time

Compatible with Other Brands

Compatible with xTool D1 and other laser engraving machines with open structure.

LightBurn

The layout, editing, and control software for common laser cutter. Engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

LaserGRBL

Free laser engraving software that is able to load any image, picture and logo and send to your laser engrave with few clicks.




Small Details. Big Differences



Soft-pad Jaws

Soft-pad covered on jaws provide a larger friction force, and prevent brittle objects from breaking.

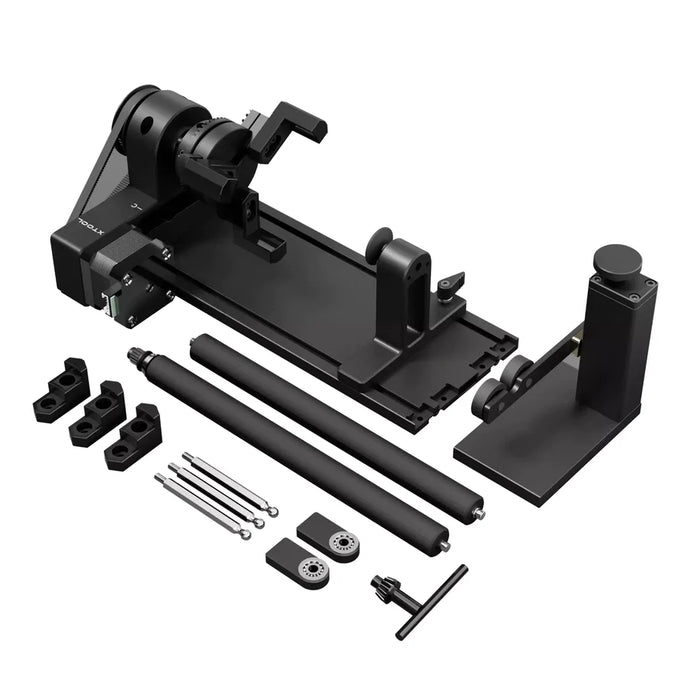

More Choice for Jaws

xTool RA2 Pro comes with double step jaws and single step jaws. Users can also 3D print their own jaws to work with more objects.



Separable Level Tool

Keep the center of objects stable all the time, especially for irregular and extra-long cylinders.


Easy to use

Smart mechanical structure design makes it easier to adjust the support module height and the chuck diameter.



Specification

Product Name RA2 Pro
Product Size 321*138*105mm
Package Size 460*182*95mm
Package Weight 2.33kg
Compatible with xTool D1, D1 Pro and other open laser engravers
Gear ratio Chuck 4:1
Chuck diameter 50mm
Engrave diameter range (Use additional risers) Roller: 3mm-198mm
Chuck: 0mm-100mm
Sphere: 25mm-100mm
Ring: 11mm-70mm
Software xTool Creative Space
LightBurn
LightGRBL
